Stretch Wrapper Machine - Semi-Automatic - High Profile (LT-500-S-HP-XC)
Stretch Wrapper Machine - Semi-Automatic - High Profile (LT-500-S-HP-XC)
Liberty Series 500 Semi-Automatic, High-Profile Stretch Pallet Wrapping Machine
Carriage
30” NO-THREAD® Powered Pre-Stretch Carriage [+$865.00]
Carriage adaptor bracket for 20” film on 30” carriage [+$340.00]
Roping Bar
Manually adjustable dual roping bar [+$320.00]
Manually adjustable single roping bar [+$260.00]
Pneumatic roping dual [+$5,690.00]
Pneumatic roping dual – extra photoeye [+$590.00]
Pneumatic roping single [+$4,500.00]
None
Clamp
SMART start clamp & pull cord [+$835.00]
Controls
Foot pedal start/stop [+$650.00]
Lanyard remote [+$850.00]
Lanyard remote [+$850.00]
Lanyard remote for dual turntables [+$975.00]
Pull cord [+$650.00]
Remote push button station [+$900.00]
Remote push button station for dual turntables [+$1,025.00]
Safety control lockout [+$500.00]
Upgrade from basic to deluxe [+$2,450.00]
Upgrade from basic to standard [+$550.00]
Warning alarm/horn [+$620.00]
Warning flashing light [+$460.00]
Extension
Wrap height extension – 104” [+$870.00]
Wrap height extension – 116” [+$1,020.00]
Wrap height extension – 92” [+$720.00]
None
Motors
Wash down motors [+$860.00]
Paint
Custom color [+$975.00]
Epoxy paint [+$1,335.00]
Steel-it paint [+$1,365.00]
None
Photoeye
Dark load detection [+$670.00]
Safety
Safety fencing [+$2,490.00]
Safety light curtains [+$6,815.00]
None
Scale
Electronic scale [+$4,980.00]
Temperature Package
Cold A (32 to 41*F / 0 to 5*C) [+$365.00]
Cold A (32 to 41*F / 0 to 5*C) – Deluxe panel [+$365.00]
Cold B (5 to 32*F / -15 to 0*C) [+$1,135.00]
Cold B (5 to 32*F / -15 to 0*C) – Deluxe panel [+$1,525.00]
Cold C (-31 to 5*F / -35 to -15*C) [+$2,675.00]
Fan & exhaust [+$580.00]
Warm A (up to 115*F / up to 46*C) [+$1,895.00]
Warm B (104*F / 40*C and up) (Call for pricing)
None
Top Platen
Electric top platen [+$4,575.00]
Wash down motors for top platen [+$430.00]
Turntable
60" round turntable [+$1,000.00]
72” round turntable [+$1,135.00]
90* exit [+$875.00]
Second turntable [+$4,995.00]
None
Qty:
$11,420.00

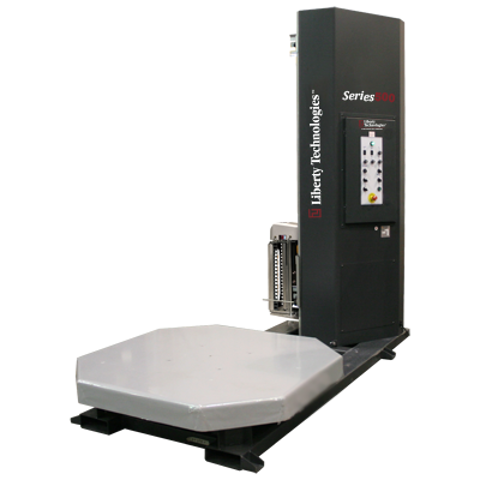

Liberty Series 500 Semi-Automatic, High-Profile Stretch Pallet Wrapping Machine
Production Rates: 55 loads per hour
Capacity: 5,000 lbs
Construction: rugged 14 gauge formed steel tower, heavy duty structural steel base, proven controls and components, NEMA 4/12 control cabinet – providing long life and less downtime due to maintenance issues
Controls: Allen Bradley MicroLogix 1200 PLC
Film Delivery: standard is 20” powered pre-stretch with 1 HP motor. Lifetime warranty on the
pre-stretch rollers. Easy load. 50 – 400% pre-stretch ratio (225% is standard). Electronic film
tension control. And more. These feature ensure film savings and load containment.
Electrical: 120 V / 1 phase / 60Hz 15A – standard low voltage – no special wiring required
Turntable: 51” diameter round base
80" wrap height
