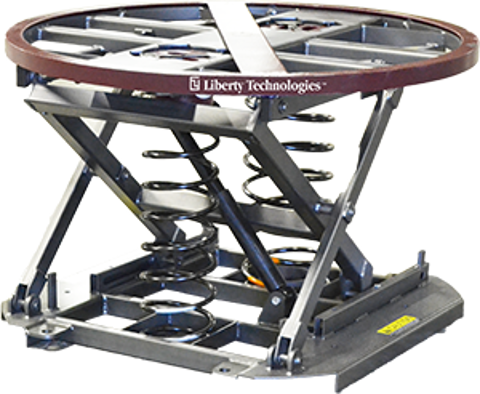

Pallet Level Loader - Spring Callobrated (LT-2775B4500S)

Liberty Spring Loader, Pallet Carousel Skid Positioner, Capacity 400 - 4500 lbs, Extended Ht. 27-3/4", Compressed Ht. 9-1/2", Turntable Ring Diameter 43-5/8", Base Dim. 36"x36"
Call for pricing

Virtually eliminate lifting, bending, and stretching which are the primary causes of back injury. The Liberty Loader incorporates a turntable to allow access to all sides of the pallet load, eliminating reach-over, and keeping workers safe while increasing productivity. Calibrated springs position the top layer of the load as pallets are built up and broken down. This maintains an ergonomically convenient working height. No power or air supply is required. The unit is equipped with fork pockets for easy relocation and to provide a stable base that does not require lagging. Pallet loads to 4,500 lbs can be handled. Standard model is listed, other sizes and features are also available.

FEATURES

  • Rugged tubular steel frame for loads 400 to 4,500 lbs.
  • Heavy-duty springs calibrated to bring pallet to most convenient loading and unloading height
  • Proven linkage design maintains level under uneven loading
  • Dampener provides smooth, gradual movement action without overshoot or spring bounce
  • Low-friction bearing- supported turntable for near-side loading and unloading, complete 360° access
  • Phenolic frame cover (optional)
  • Includes turntable that allows access to all sides of the pallet load to eliminate reach-over
  • Fork pockets for easy relocation by fork truck also extend base for free standing stability
  • Leveling feet (optional) allow use on sloping or uneven floors
  • No installation required
  • Two year parts and labor warranty

SPECIFICATIONS

Capacity (lbs)Extended HeightCompressed HeightTurntable Ring DiameterBase Dim.Approx. Ship Weight
400 - 4,50027-3/4"9-1/2"43-5/8"36" x 36"475
