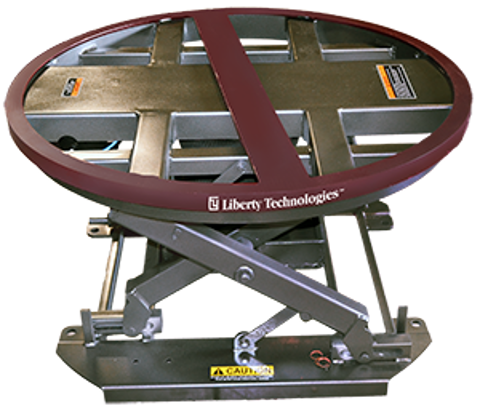

Pallet Level Loader - Capacity 400 - 4500 lbs. (LT-2775B4500A)

Liberty Air Loader, Pallet Carousel Skid Positioner, Capacity 400 - 4500 lbs, Extended Ht. 27-3/4", Compressed Ht. 9-1/2", Turntable Ring Diameter 43-5/8", Base Dim. 36"x36"
Call for pricing

Virtually eliminate lifting, bending, and stretching which are primary causes of back injury. Designed use where pallet loads vary widely and are changed frequently to keep the work at an ergonomically convenient working height. The airbag provides virtually linear response. The design allows complete access to all sides of the pallet load, eliminating reach-over, and keeping workers safe while increasing productivity. Fittings and tubing are simple with only two connections. Simply inflate the airbag with shop air or a portable air compressor. The unit is equipped with fork pockets for easy relocation and to provide a stable base that does not require lagging. Standard model is listed, other sizes and features are also available.

FEATURES

  • Rugged, center justified tubular legs for loads to 400 to 4,500 lbs
  • Requires no connection to air source for operation
  • Full guarded easily accessible air outlet and gauge
  • Air bag fully protected in down position
  • Phenolic frame cover (optional)
  • Low-friction, bearing-supported turntable for near-side loading and unloading, complete 360° access
  • Easily adjustable air bag to provide linear response and automatically returns the turntable height to the initial level as pallets are removed
  • Includes turntable that allows access to all sides of the pallet load to eliminate reach-over
  • Fork pockets for easy relocation by fork truck also extend base for free standing stability
  • No installation required
  • Two year parts and labor warranty


SPECIFICATIONS

Capacity (lbs)Extended HeightCompressed HeightTurntable Ring DiameterBase Dim.Approx. Ship Weight
400 - 4,50027-3/4"9-1/2"43-5/8"36" x 36"435
