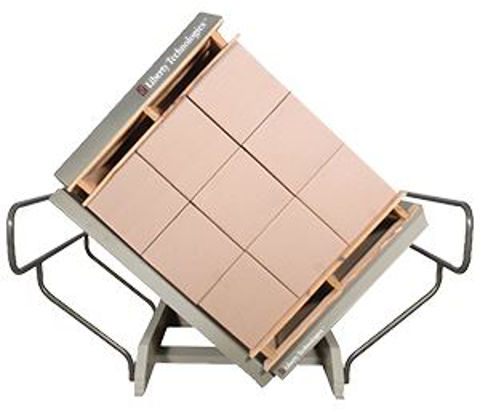

Pallet Inverter - Capacity 4400 lbs. - Clamp Max WxD 48"x48" (LT-8400F44003P)
Capacity 4400 lbs, Clamping Capacity 48"Lx48"W by 54" to 84" high loads, Overall Unit Dim. 114.5"Wx85"Dx99"H, 460/3/60
Effortlessly replace damaged product and exchange pallets. Liberty Inverter is a fast, safe, economical way to rotate pallet loads. They improve productivity and worker safety by reducing the effort and time to manually unstack and restack loads to replace broken pallets or damaged product and simplifies the exchange of shipping and in-house pallets or transfer from pallets to slip sheets by rotating the load up to 180 degrees. Standard models are listed, larger capacities and clamp openings are also available.
FEATURES Easy Pallet Change-Out, Effortlessly Replace Damaged Product Pressure adjustable clamping mechanism easily secures loads up to 4,400 lbs and rotates them 180 degrees Ability to handle pallet loads measuring up to 48" x 48" by 60", 72”, or 84” high Remote Operator Interface is so simple that operators can be trained to use it in a matter of seconds Clamping pressure can be adjusted by the user to prevent crushing of delicate loads Safety Rail provides a visual alert as well as a physical barrier to protect operators Rugged A-Frame design houses a massive anti-friction bearing to smoothly invert entire pallet loads with minimal maintenance Fork pockets for easy relocation by fork truck Two year parts and labor warranty SPECIFICATIONS
Capacity (lbs) Clamp Load Max WxD Clamp Load Max Ht. Clamp Load Min Ht. Primary Voltage Approx. Ship Wt. 4,400 48" x 48" 84" 54" 460/3/60 4,310 VIDEO
